Streetview scrape

Posted by in Data, Design, GIS

I wrote this script to download google streetview images locally for a list of addresses in a text file, one address per line. It’s an easy (at the least preliminary) way to get images of structures, houses, etc.. We needed this for an inventory of certain structures in a planning effort, but this can be utilized for a wide variety of purposes.

The first thing needed is a text file with addresses that will be turned into local copies of streetview images.

Here’s part of the text file I use in this example. This is the formatting needed for this script, no headers, one line per address. If you want to try this, save the following as a text file locally and call that text file in the script later.



310 E. Monte Vista Ave. Ste A Vacaville CA 95688
3777-B Vaca Valley Parkway Vacaville CA 95688
950 Mason Street Vacaville CA 95688
848 A Alamo Drive Vacaville CA 95688
7428 Paddon Road Vacaville CA 95688
4117 Cricket Trail Vacaville CA 95687
851 La Cruz Lane Vacaville CA 95687
396 West Monte Vista Avenue Vacaville CA 95688
325 Stone Manor Crt. Vacaville CA 95687
4692 Udell Road Vacaville CA 95688
513 Tipperary Drive Vacaville CA 95688
931 Reading Way Vacaville CA 95687
707 Morning Sun Court Vacaville CA 95688
4219 Rolling Hills Lane Vacaville CA 95688
254 Donegal Court Vacaville CA 95688
1943 Marshall Rd Vacaville CA 95687
184 Woodridge Circle Vacaville CA 95687
621 S Orchard Vacaville CA 95688
1201 Burton Drive Vacaville CA 95687
126 Peabody Road Vacaville CA 95687
1707 California Drive Rm 3 Vacaville CA 95687
1625 Alamo Drive Vacaville CA 95687
101 Markham Avenue Room 26 Vacaville CA 95688
100 Padan School Road Vacaville CA 95688
880 Alamo Drive Vacaville CA 95688
581 Peabody Road Vacaville CA 95687
3442 Browns Valley Rd, #100 Vacaville CA 95688
425 Hemlock Vacaville CA 95688
301 N Orchard Ave Vacaville CA 95688
425 Hemlock Vacaville CA 95688
580 Trinity Drive Vacaville CA 95687
1117 Davis Street Vacaville CA 95687
1201 Burton Drive Vacaville CA 95687
880 Alamo Drive Vacaville CA 95688
581 Peabody Road Vacaville CA 95687
3442 Browns Valley Rd, #100 Vacaville CA 95688



The script itself is below, it’s thoroughly commented. Read the comments above each part as a guide to each step. To use it yourself, the things you need to play with are the ‘text’ variable (point to the location on your harddrvie with the address text file) and the ‘suf’ cariable, get a google streetview api key and change it here (google ‘google streetview api’ if you need help or don’t have one).

After those things are in place the script can be run in the python command line. I’d suggest copying the entire script except the last line so get a better feel for what it does.



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
#import os and urllib modules
#os for file path creation
#urllib for accessing web content
import urllib
import os

#this is the first part of the streetview, url up to the address, this url will return a 600x600px image
pre="https://maps.googleapis.com/maps/api/streetview?size=600x600&location="

#this is the second part of the streetview url, the text variable below, includes the path to a text file containing one address per line
#the addresses in this text file will complete the URL needed to return a streetview image and provide the filename of each streetview image
text="C:\Users\BrianGreer\Desktop\Test_Address.txt"

#this is the third part of the url, needed after the address
#this is my API key, please replace the one below with your own (google 'google streetview api key'), thanks!
suf="&key=AIzaSyAC9P4Njf_yRogkp0M-cPpWr5Op_r6hvg4"

#this is the directory that will store the streetview images
#this directory will be created if not present
dir=r"C:\Users\BrianGreer\Desktop\imagescrape"

#checks if the dir variable (output path) above exists and creates it if it does not
if not os.path.exists(dir):
    os.makedirs(dir)

#opens the address list text file (from the 'text' variable defined above) in read mode ("r")
with open(text,"r") as text_file:
  #the variable 'lines' below creates a list of each address line in the source 'text' file
  lines = [line.rstrip('\n') for line in open(text)]
  print "THE CONTENTS OF THE TEXT FILE:\n"+str(lines)
  #start a loop through the 'lines' list
  for line in lines:
    #string clean-up to get rid of commas in the url and filename
    ln = line.replace(",","")
    print "CLEANED UP ADDRESS LINE:\n"+ln
    # creates the url that will be passed to the url reader, this creates the full, valid, url that will return a google streetview image for each address in the address text file
    URL = pre+ln+suf
    print "URL FOR STREETVIEW IMAGE:\n"+URL
    #creates the filename needed to save each address's streetview image locally
    filename = os.path.join(dir,ln+".jpg")
    print "OUTPUT FILENAME:\n"+filename
    #you can run this up to this line in the python command line to see what each step does
    #final step, fetches and saves the streetview image for each address using the url created in the previous steps
    urllib.urlretrieve(URL, filename)

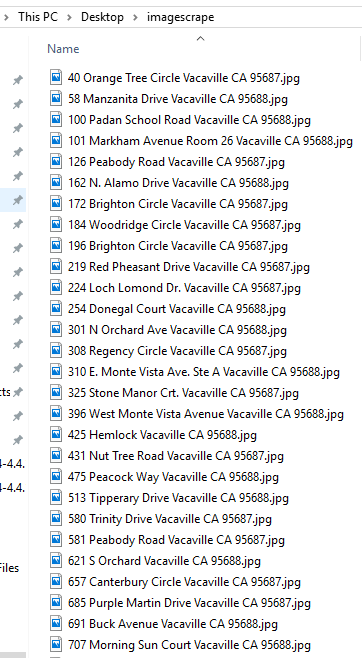

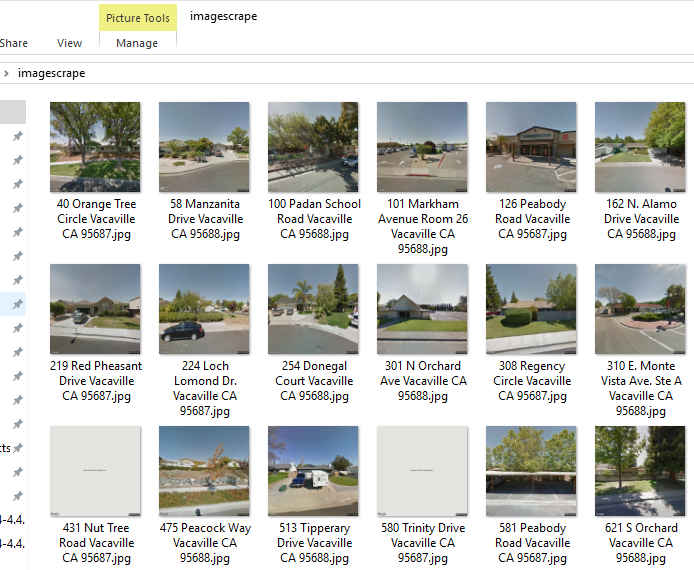

Once you are ready, run the script including the last line and watch the magic as the imagescrape folder fills with streetview images.



00





01





This script was used to help build a catalog of dozens of structures. An important component of the catalog was to have a photograph of the facade of each structure to illustrate its condition.

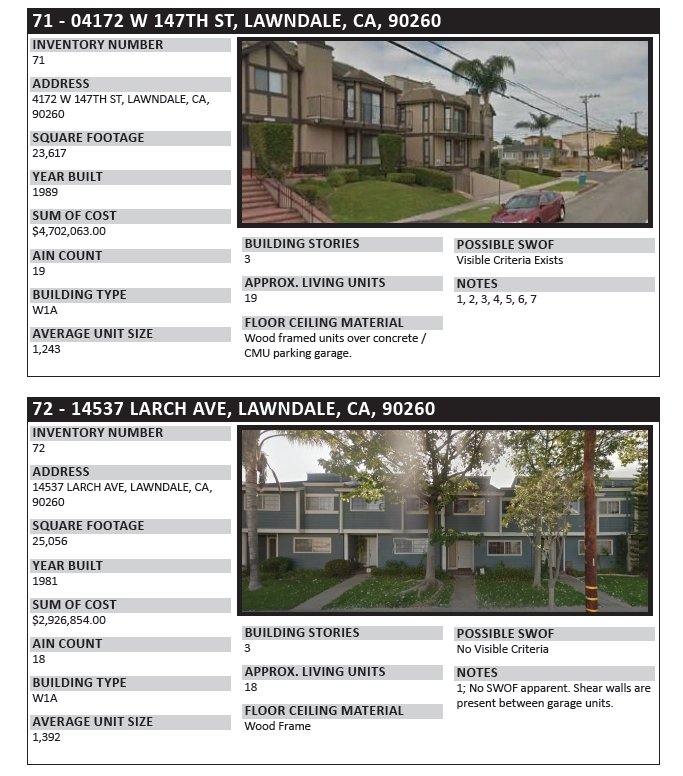

A sample of the final product can be seen below.



02
